Datasheet: ZR36710 (Zoran (OAK))

Vaddis Iii(tm) Integrated DVD Decoder



Скачать: PDF   ZIP

November 1998
ZORAN Corporation
s
3112 Scott Blvd.
s
Santa Clara, CA 95054
s
+1 (408) 919-4111
s
FAX +1 (408) 919-4122
s
www.zoran.com
PRODUCT BRIEF
FEATURES
ZR36710
Vaddis IIITM INTEGRATED DVD DECODER
s
Single Chip DVD Decoder Solution for DVD Player Designs
s
Highest Certification for Dolby Digital Audio
s
DTS and MPEG5.1 passthrough via S/PDIF output
s
Patented Single 16Mbit SDRAM for Full Operation
s
Picture Zoom Functionality
s
Embedded Karaoke Capability
s
3D Audio Post-processing Capability
s
Reverse Trickplays Including Smooth Reverse
s
Dolby Digital, Pro-Logic, MPEG Audio Capability
s
VCD/CD compatible
s
Embedded 40 MIPS DSP
s
160 pin TQFP Package
s
Less than 1W power consumption
s
Integrated OSD processor

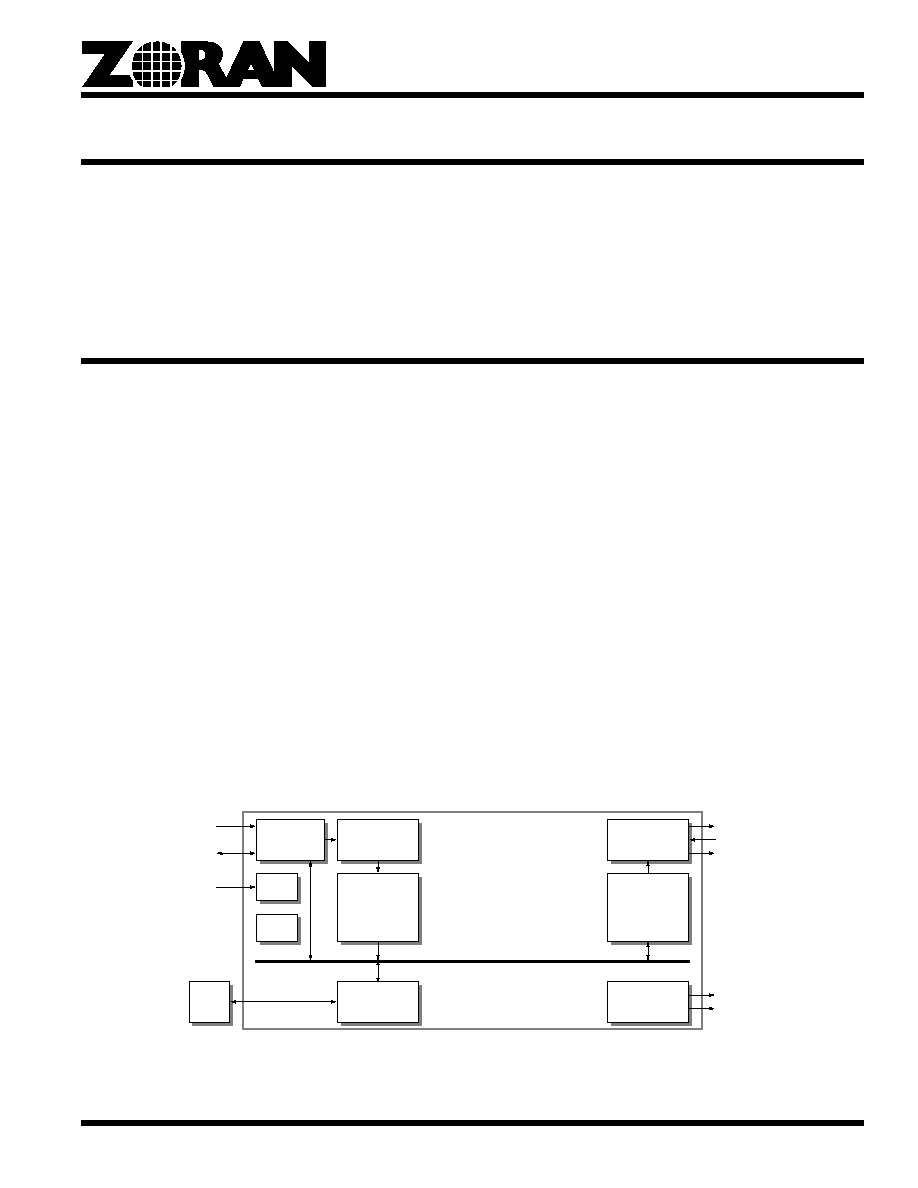

Figure 1. Vaddis III Block Diagram
HBI
Host BUS I/F
DVP
Demux/Video
Processor
PLL
CSS
Decrypt
PRU
Reconstruction
Unit
SPU
Serial Processing
Unit
ADP
Audio Decode
Processor
40 MIPS DSP
MCU
Memory Control
Unit
VPU
Video
Post-processing
Sub-picture, OSD
Letterbox
Pan-Scan
Line 21
MPEG 1/2 Video
Decode Still Frame
Digest Function
Program Demux, System
Demux, Error Concealment
Trick Modes, PES Handling
AC-3 2/6 channel
MPEG Audio
LPCM
3D/Virtual Surround/Karaoke
MPEG 2 Audio
Prologic Decode/Encode
8 Channel Output
2 Channel Input
CD-DSP DVD-DSP
16 MBit
SDRAM
8 bit/ 16 bit Host VMI
27 MHz
8/16 bit YCrCb
Sync
6 Channels Audio Out
2 Channel Audio In
S/PDIF Out
The ZR36710 DVD decoder is targeted for third generation DVD
products. The highly integrated ZR36710 is ideal for developing
a high-quality DVD player. The product is based on Zoran's
strong history in the DVD marketplace. Through the Standard-
PlusTM design methodology, functions such as reverse trickplays
and zoom capability are provided. The ZR36710, through its Sil-
iconSoftwareTM feature, has the capability to integrate key
functions such as 3D audio and Karaoke.
Highest Quality Audio
The internal architecture of the ZR36710, which is based on
Zoran's field proven audio DSP, enables the development of a
DVD system which meets the highest quality audio standards.
The ZR36710 DVD decoder includes an embedded 20-bit high-
performance audio DSP which enables the Vaddis architecture
to perform at audiophile quality for its audio output signals. Other
solutions, which use 16-bit audio technology cannot attain this
status. The high performance capability of the embedded audio
DSP enables the implementation of additional audio processing
algorithms such as Karaoke and 3D audio.
DVD Support
The ZR36710 handles all aspects of DVD decoding according to
the DVD Specification. The single-chip device performs DVD
authentication/decryption, demux and parsing, MPEG-2 or
MPEG-1 video decode, sub-picture decode, highlight process-
ing, audio/video synchronization, Dolby Digital decoding, Pro-
Logic decoding and 3D audio. In addition, an on-screen display
unit offers overlayed graphics and a closed caption modulator
provides support for line 21 data.
At the heart of the Vaddis ZR36710 are two powerful processing
units: the Demux/Video Processor (DVP unit) and the Audio
Decode Processor (ADP unit), a user programmable, 40 MIPS,
DSP engine. The DVP unit operates from downloadable micro-
code to parse the bitstream and route data to the appropriate
units. The Picture Reconstruction Unit completes the MPEG-2 or
MPEG-1 video decode and passes the image to the Video Post
Processing (VPU unit). The VPU unit performs vertical/horizon-
tal scaling, decodes and blends Sub-picture data, inserts Line 21
(close caption) text and overlays On Screen Display data.
DESCRIPTION
2
Vaddis IIITM Integrated DVD Decoder
KEY FEATURES
DTS and MPEG Multi-channel Passthrough
The ZR36710 incorporates the capability to provide a digital
output of DTS or MPEG 5.1 through the S/PDIF output. This
digital data is transmitted for use by an audio receiver for multi-
channel decoding.
Karaoke
Karaoke is a popular feature for the Asia market. Karaoke
features can be implemented in the ZR36710, thus eliminating
the need for an external karaoke processor. Voice Canceling is
a feature to eliminate the singer's voice on a CD by comparing
left and right channels and filtering out the vocal content,
allowing you to sing along. The echo function provides the effect
of singing in a large auditorium and slightly modifies the singer's
voice to enhance the sound. Key Control adjusts the pitch of the
music by quarter tones to allow the pitch of the music to be
shifted to match the pitch of the singer's voice.
Reverse Trickplay
Further adding to the video capability of the Vaddis, the
ZR36710 incorporates reverse trickplay functionality to provide
seamless reverse functions in addition to the standard trickplay
functions common to DVD players. The reverse trickplay
provides smooth transitions for a viewer to single step or fast
reverse through scenes.
Patented SDRAM Memory Usage
The ZR36710 uses a patented and proprietary implementation
for DVD decoding with a single 16 Mbit SDRAM. This dramati-
cally reduces the number of the chips and the size of the
required memory, thereby lowering the power consumption and
the overall cost of a DVD system.
A Solution for the Consumer DVD Player Market.
The Vaddis III ZR36710 can be used in a DVD Player design.
High quality audio is a key feature of DVD and the Vaddis
supports the highest quality Dolby Digital possible for a DVD
player design. In addition, the functions of reverse trickplay and
zoom capability enhance the video playback. Support for DTS
passthrough enables the playback of video titles that are
encoded with DTS audio tracks. Support for MPEG5.1 provides
the same capability. In summary, the ZR36710 is ideally suited
for developing a high quality, feature rich third generation DVD
player design.

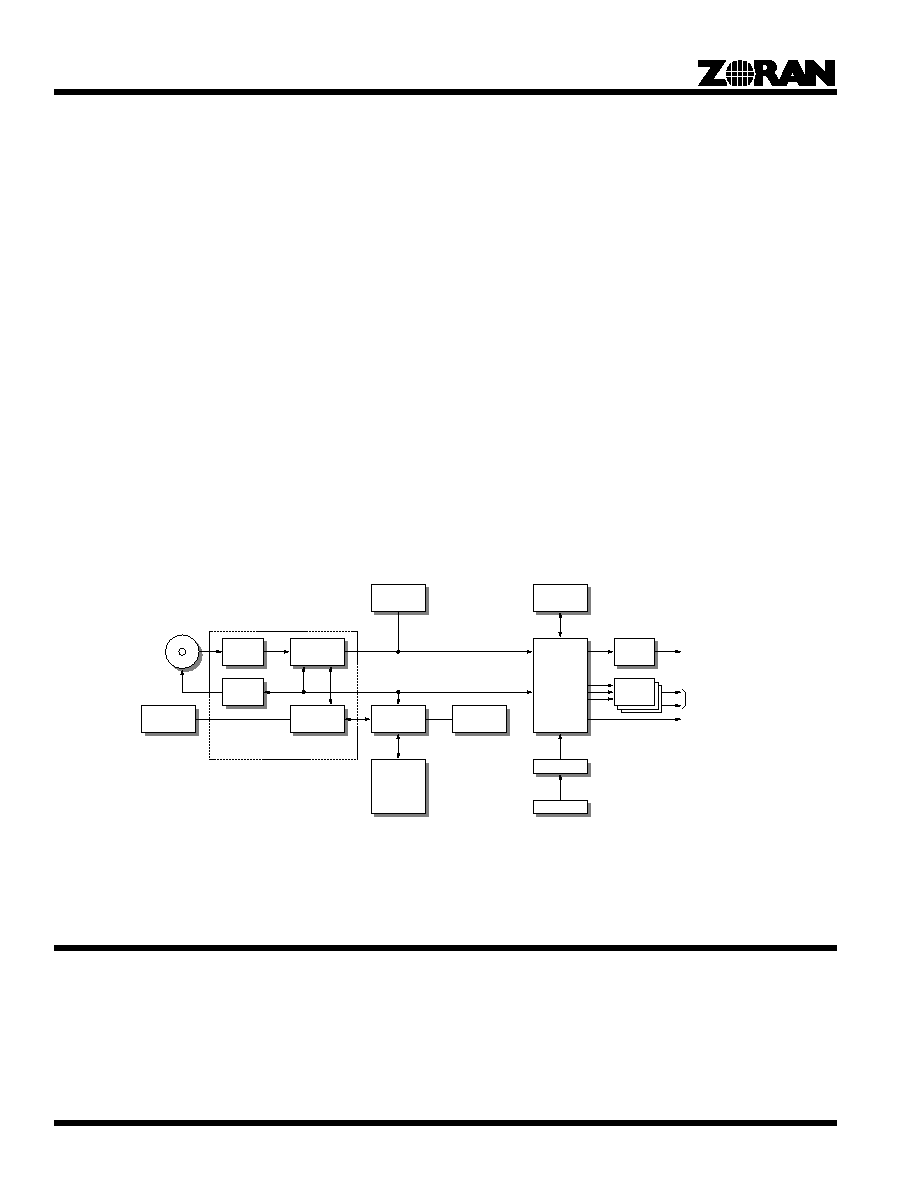

Figure 2. DVD Player Application Using the Vaddis III ZR36710
ZORAN
Vaddis III
ZR36710
Audio
DAC
TV
Encoder
TV
2~6 ch Audio
S/PDIF
16 MBit
SDRAM
Host Micro
(CPU)
CPU
Memory
Keypad
Panel
Display
Remote
A/D
Mic
Front End
Micro
Front End
Memory
DVD-DSP
Servo
RF AMP
Track
Buffer
DVD Drive Electronics
Vaddis is a trademark of Zoran Corporation. All other trademarks are property of their respective companies.
For More Information:
U.S. Headquarters
s
Zoran Corporation
3112 Scott Blvd.
Santa Clara, CA 95054 USA
Telephone: +1 (408) 919-4111
FAX: +1 (408) 919-4122
Israel Operations
s
Zoran Microelectronics, Ltd.
Advanced Technology Center
P.O. Box 2495
Haifa, 31024 Israel
Telephone: +972 4 8545-777
FAX: +972 4 8551-550
Japan
s
Zoran Japan Office
2-2-8 Roppongi, Minato-ku
Tokyo 106-0032, Japan
Telephone: +03-5574-7081
FAX: +03-5574-7156
China
s
Zoran China Office
Suite 1706, Grand Skylight Hotel
68 Central Shennan Rd.
Shenzhen, Guangdong, 518041, PR China
Telephone: +86 755-3363225
FAX: +86 755-3363256
