Datasheet: F10067 (Rhopoint Components)

RTI AUDIO FILM CAPACITORS



Скачать: PDF   ZIP
Rhopoint Components
RTI AUDIO FILM CAPACITORS
F10067 Series - 200VDC
Metallized Polypropylene
MATERIAL: Metallized Polypropylene capacitors in non-inductive construction.
LEADS: Tinned Copper soldered to capacitor with 63-37 Sn-Pb
TEMPERATURE RANGE: May be operated at rated voltage from -55C to + 85C. Voltage must be de-
rated linearly to 60% between +85C to +105C.
ELECTRICAL [NON-DESTRUCTIVE] TESTS:
1.
Capacitance shall be measured at 1 KHz. 20 Hz and + 25C for values up to 1.0 MFD. Values
greater than 1.0 MFD. shall be measured at 120 Hz. 10 Hz.
Ref: MIL-STD-202E, method 305.
2.
Dissipation Factor shall be measured as described for capacitance and shall not exceed 0.2%.
3.
Insulation Resistance shall be measured at rated voltage. After 2 minutes under voltage, minimum
values shall be 200,000 MEG/MFD., need not exceed 400,000 megohms.
Ref: MIL-STD-202E, method 302.
4.
Dielectric Strength: Capacitors shall withstand specified DC test potential for 60 seconds through a
limiting resistance of 1 ohm/volt. Terminal to terminal will be 150% of rated voltage. TerminaI to
case will be 200 % of rated voltage..
Ref: MIL-STD-202E, method 301.
5.
Dielectric Absorption shall not exceed 0.1% when tested to MIL-C-19978D.
Ref: MIL-C-19978D, paragraph 3.22.

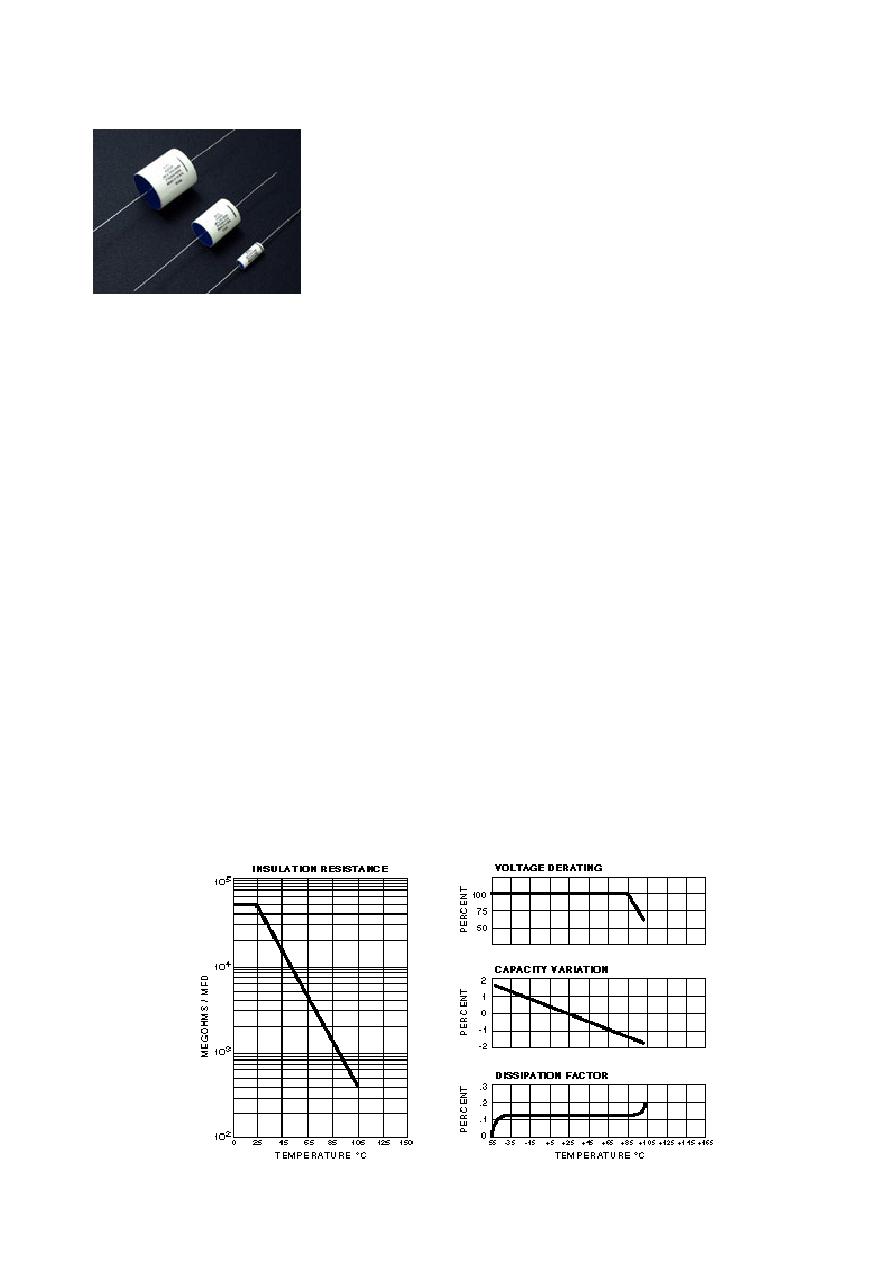

TYPICAL TEMPERATURE CHARACTERISTICS
Page 1 of 4
F10067 Series
RHOPOINT COMPONENTS LTD
Tel: +44 (0) 870 608 1188 Fax: +44 (0) 870 241 2255

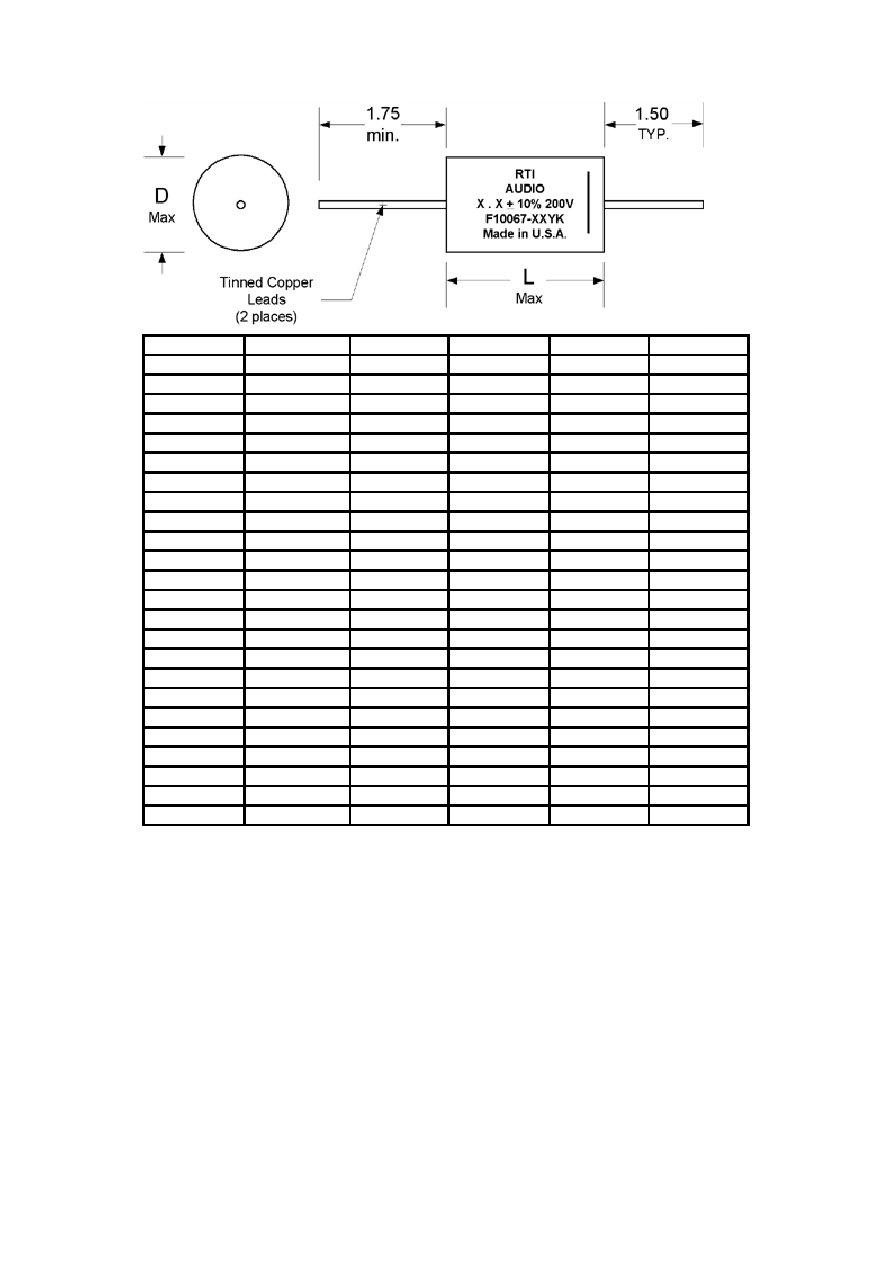

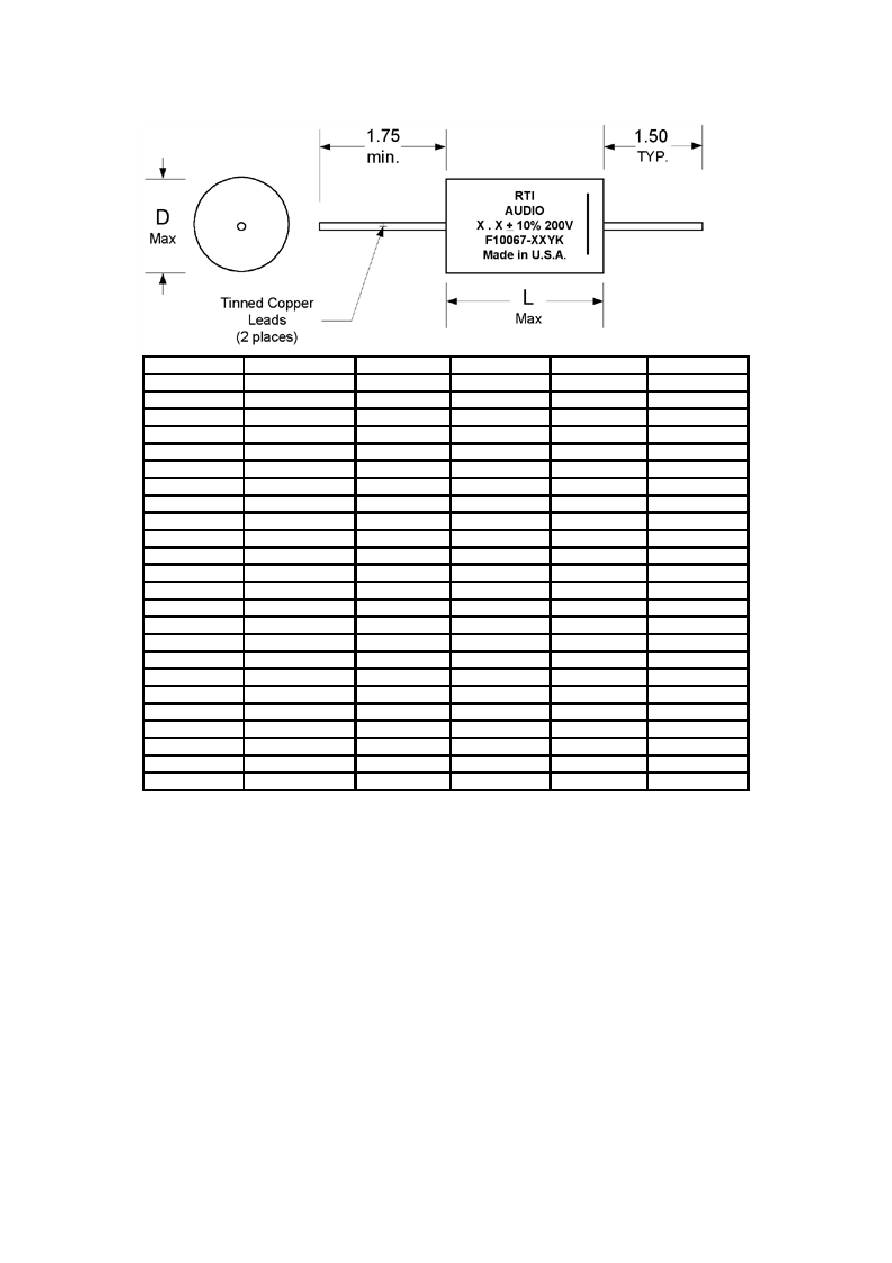

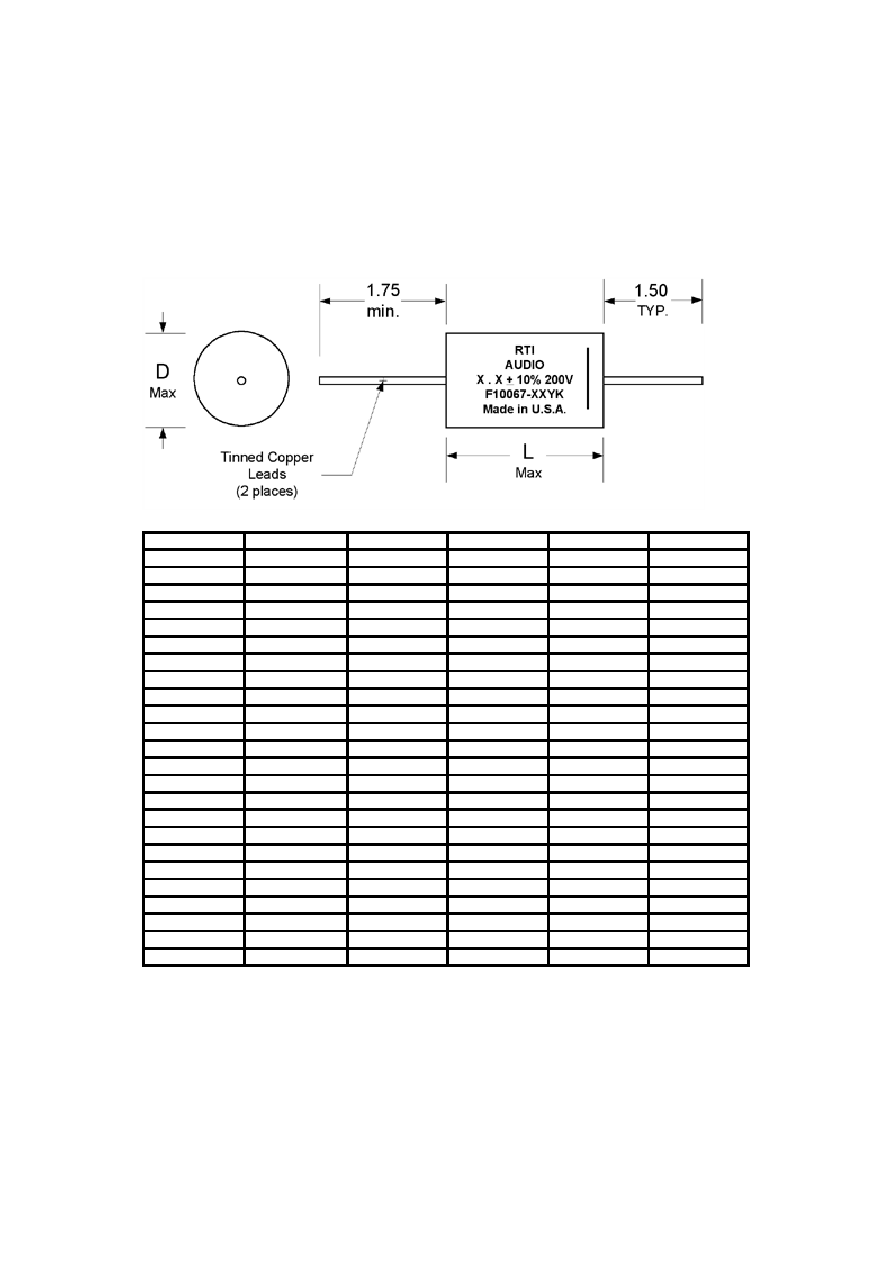

P/N
CAPACITANCE
Dia (in.)
Length (in.)
Lead (awg)
LeadDia
F10067-102
.001 MFD
0.32
0.48
#24
0.020
F10067-122
.0012 MFD
0.32
0.48
#24
0.020
F10067-152
.0015 MFD
0.32
0.48
#24
0.020
F10067-182
.0018 MFD
0.32
0.48
#24
0.020
F10067-222
.0022 MFD
0.32
0.48
#24
0.020
F10067-272
.0027 MFD
0.32
0.48
#24
0.020
F10067-332
.0033 MFD
0.32
0.48
#24
0.020
F10067-392
.0039 MFD
0.32
0.48
#24
0.020
F10067-472
.0047 MFD
0.32
0.60
#24
0.020
F10067-562
.0056 MFD
0.32
0.60
#24
0.020
F10067-682
.0068 MFD
0.32
0.60
#24
0.020
F10067-822
.0082 MFD
0.32
0.60
#24
0.020
F10067-103
.010 MFD
0.32
0.60
#24
0.020
F10067-123
.012 MFD
0.34
0.60
#24
0.020
F10067-153
.015 MFD
0.36
0.60
#24
0.020
F10067-183
.018 MFD
0.40
0.60
#24
0.020
F10067-223
.022 MFD
0.40
0.60
#24
0.020
F10067-273
.027 MFD
0.42
0.60
#24
0.020
F10067-333
.033 MFD
0.46
0.60
#24
0.020
F10067-393
.039 MFD
0.48
0.60
#24
0.020
F10067-473
.047 MFD
0.48
0.73
#22
0.025
F10067-563
.056 MFD
0.48
0.73
#22
0.025
F10067-683
.068 MFD
0.52
0.73
#22
0.025
F10067-823
.082 MFD
0.50
0.73
#22
0.025

Last character on Part No. indicates tolerance: K- 10%, J - 5%, G - 2%, F - 1%
Custom values obtainable, notify factory for suggestions.
Page 2 of 4
F10067 Series
RHOPOINT COMPONENTS LTD
Tel: +44 (0) 870 608 1188 Fax: +44 (0) 870 241 2255
L
ast character on Part No. indicates tolerance: K- 10%, J - 5%, G - 2%, F - 1%
Custom values obtainable, notify factory for suggestions.
P/N
CAPACITANCE
Dia (in.)
Length (in.)
Lead (awg)
Lead Dia
F10067-104
.10 MFD
0.40
0.73
#22
0.025
F10067-124
.12 MFD
0.42
0.73
#22
0.025
F10067-154
.15 MFD
0.45
0.73
#22
0.025
F10067-184
.18 MFD
0.48
0.73
#22
0.025
F10067-224
.22 MFD
0.38
0.84
#22
0.025
F10067-274
.27 MFD
0.40
0.84
#22
0.025
F10067-334
.33 MFD
0.44
0.84
#22
0.025
F10067-394
.39 MFD
0.46
0.84
#22
0.025
F10067-474
.47 MFD
0.52
0.84
#22
0.025
F10067-564
.56 MFD
0.54
0.84
#22
0.025
F10067-684
.68 MFD
0.60
0.84
#22
0.025
F10067-824
.82 MFD
0.64
0.84
#22
0.025
F10067-105
1.0 MFD
0.70
0.84
#22
0.025
F10067-125
1.2 MFD
0.68
0.98
#20
0.031
F10067-155
1.5 MFD
0.75
0.98
#20
0.031
F10067-185
1.8 MFD
0.80
0.98
#20
0.031
F10067-205
2.0 MFD
0.85
0.98
#20
0.031
F10067-225
2.2 MFD
0.90
0.98
#20
0.031
F10067-255
2.5 MFD
0.88
1.10
#20
0.031
F10067-275
2.7 MFD
0.90
1.10
#20
0.031
F10067-305
3.0 MFD
0.94
1.10
#20
0.031
F10067-335
3.3 MFD
1.00
1.10
#20
0.031
F10067-357
3.5 MFD
1.02
1.10
#20
0.031
F10067-375
3.7 MFD
0.96
1.28
#20
0.031
Page 3 of 4
F10067 Series
RHOPOINT COMPONENTS LTD
Tel: +44 (0) 870 608 1188 Fax: +44 (0) 870 241 2255

P/N
CAPACITANCE
Dia (in.)
Length (in.)
Lead (awg)
Lead Dia
F10067-405
4.0 MFD
1.00
1.30
#20
0.031
F10067-475
4.7 MFD
1.10
1.30
#20
0.031
F10067-505
5.0 MFD
1.12
1.30
#20
0.031
F10067-565
5.6 MFD
1.04
1.55
#20
0.031
F10067-605
6.0 MFD
1.08
1.55
#20
0.031
F10067-655
6.5 MFD
1.10
1.55
#20
0.031
F10067-705
7.0 MFD
1.15
1.55
#20
0.031
F10067-755
7.5 MFD
1.20
1.55
#20
0.031
F10067-805
8.0 MFD
1.25
1.55
#20
0.031
F10067-855
8.5 MFD
1.28
1.55
#20
0.031
F10067-905
9.0 MFD
1.25
1.68
#20
0.031
F10067-955
9.5 MFD
1.28
1.68
#20
0.031
F10067-106
10.0 MFD
1.30
1.68
#18
0.040
F10067-116
11.0 MFD
1.36
1.68
#18
0.040
F10067-126
12.0 MFD
1.42
1.68
#18
0.040
F10067-136
13.0 MFD
1.46
1.68
#18
0.040
F10067-146
14.0 MFD
1.50
1.68
#18
0.040
F10067-156
15.0 MFD
1.50
1.80
#18
0.040
F10067-166
16.0 MFD
1.54
1.80
#18
0.040
F10067-186
18.0 MFD
1.64
1.80
#18
0.040
F10067-206
20.0 MFD
1.72
1.80
#18
0.040
F10067-256
25.0 MFD
1.82
1.92
#18
0.040
F10067-306
30.0 MFD
1.92
2.06
#18
0.040
F10067-356
35.0 MFD
2.06
2.06
#18
0.040

Last character on Part No. indicates tolerance: K- 10%, J - 5%, G - 2%, F - 1%
Custom values obtainable, notify factory for suggestions.
Rhopoint Components Ltd
Tel: +44 (0) 870 608 1188 Fax: +44 (0) 870 241 2255
Germany +49 (0) 692 199 8606 Fax: +49 (0) 692 199 8595
Email: sales@rhopointcomponents.com Website: www.rhopointcomponents.com
Page 4 of 4
F10067 Series
RHOPOINT COMPONENTS LTD
Tel: +44 (0) 870 608 1188 Fax: +44 (0) 870 241 2255
