Datasheet: F-51430NF-FW-AB (Optrex Corporation)

Size:9.4 Display Format:640*480 Contrast Ratio:10:1 Luminance:110 Backlight:cct Product Category:monochrome-graphic Type:transmissive LCD Mode:black/white Viewing Direction: 6:00 Interface: N/a View Angle (h V):+-50 -35/25 Temperature: Normal



Скачать: PDF   ZIP
Optrex Corporation
F-51430NF-FW-AB (AB) No. 2002-0043
OPTREX CORPORATION
Page 1/18
LCD Module Technical Specification
F-51430NF-FW-AB
Table of Contents
1. General Specifications
.................................................................................................................................. 2
2. Electrical Specifications
............................................................................................................................... 3
3. Optical Specifications
................................................................................................................................... 8
4. I/O Terminal
.................................................................................................................................................... 10
5. Test
................................................................................................................................................................... 12
6. Appearance Standards
............................................................................................................................... 13
7. Code System of Production Lot
............................................................................................................... 16
8. Type Number
.................................................................................................................................................. 16
9. Applying Precautions
.................................................................................................................................. 16
10. Precautions Relating Product Handling
................................................................................................ 17
11. Warranty
........................................................................................................................................................ 18
Checked by (Design Engineering Div.)
Checked by (Quality Assurance Div.)
Approved by (Production Div.)
Prepared by (Production Div.)
Revision History
Rev.
Date
Page
Comment
Type No.
Feb 13, 2002
O P T R E X
First Edition
Final Revision
******
F-51430NF-FW-AB (AB) No. 2002-0043
OPTREX CORPORATION
Page 2/18
1. General Specifications
Operating Temp.
: min. 0
C ~max. 50
C
Storage Temp.
: min. -20
C ~max. 60
C
Dot Pixels
: 640 (W)
480 (H) dots
Dot Size
: 0.27 (W)
0.27 (H) mm
Dot Pitch
: 0.30 (W)
0.30 (H) mm
Viewing Area
: 198.0 (W)
150.0 (H) mm
Outline Dimensions
: 260.0* (W)
174.0 (H)
8.3 max. (D) mm
* Without CFL Cable
Weight
: 438.5g max.
LCD Type
: NTD-21140
( F-STN / Black
&White-mode / Transmissive )
Viewing Angle
: 6:00
Data Transfer
: 4-bit parallel data transfer
2
Backlight
: Cold Cathode Fluorescent Lamp (CFL)
1
Drawings
: Dimensional Outline UE-210259A
F-51430NF-FW-AB (AB) No. 2002-0043
OPTREX CORPORATION
Page 3/18
2. Electrical Specifications
2.1. Absolute Maximum Ratings
V
SS
=0V
Parameter
Symbol
Conditions
Min.
Max.
Units
Supply Voltage
(Logic)
V
CC
-V
SS
-
-0.3
7.0
V
Supply Voltage
(LCD Drive)
V
HH
-V
SS
-
-0.3
30.0
V
Input Voltage
V
I
-
-0.3
V
CC
+0.3
V
2.2. DC Characteristics
Ta=25
C, V
SS
=0V
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Supply Voltage
(Logic)
V
CC
-V
SS
-
4.5
-
5.5
V
Supply Voltage
(LCD Drive)
V
HH
-V
SS
Shown in 3.1
V
High Level
Input Voltage
V
IH
V
CC
=4.5~5.5V
0.8
V
CC
-
V
CC
V
High Level
output Voltage
V
OH
I
OH
=-0.4mA
V
CC-
0.4
-
-
V
Low Level
Input Voltage
V
IL
V
CC
=4.5~5.5V
0
-
0.2
V
CC
V
Low Level
output Voltage
V
OL
I
OH
=0.4mA
-
-
0.4
V
Supply Current
I
CC
V
CC
-V
SS
=5.0V
-
0.7
1.0
mA
I
HH
V
HH
-V
SS
=21.4V
-
8.7
13.0
mA
F-51430NF-FW-AB (AB) No. 2002-0043
OPTREX CORPORATION
Page 4/18
2.3. AC Characteristics
V
CC
=4.5~5.5V
Parameter
Symbol
Min.
Max.
Units
Shift Clock Period
t
WCK
71
-
ns
Shift Clock "H" Pulse Width
t
WCKH
23
-
ns
Shift Clock "L" Pulse Width
t
WCKL
23
-
ns
Data Setup Time
t
DS
10
-
ns
Data Hold Time
t
DH
20
-
ns
Latch Pulse "H" Pulse Width
t
WLPH
23
-
ns
Shift Clock Rise to Latch Pulse Rise Time
t
LD
0
-
ns
Shift Clock Fall to Latch Pulse Fall Time
t
SL
25
-
ns
Latch Pulse Rise to Shift Clock Rise Time
t
LS
25
-
ns
Latch Pulse Fall to Shift Clock Rise Time
t
LH
25
-
ns
Input Signal Rise,Fall Time
t
r,
t
f
-
50 Note.1
ns
Data Setup Time
t
SU
30
-
ns
Data Hold Time
t
H
50
-
ns
DISPOFF Removal Time
t
SD
100
-
ns
DISPOFF Enable Pulse Width
t
WDL
1.2
-
s
t
WDL
t
SD
tr
tf
t
DH
t
DS
t
WCKL
t
LH
t
SL
CP
t
LD
t
LS
LP
DISPOFF
DU0~DU3
DL0~DL3
t
WLPH
TOP DATA
LAST DATA
t
WCK
t
WCKH
FLM
t
SU
t
H
F-51430NF-FW-AB (AB) No. 2002-0043
OPTREX CORPORATION
Page 5/18

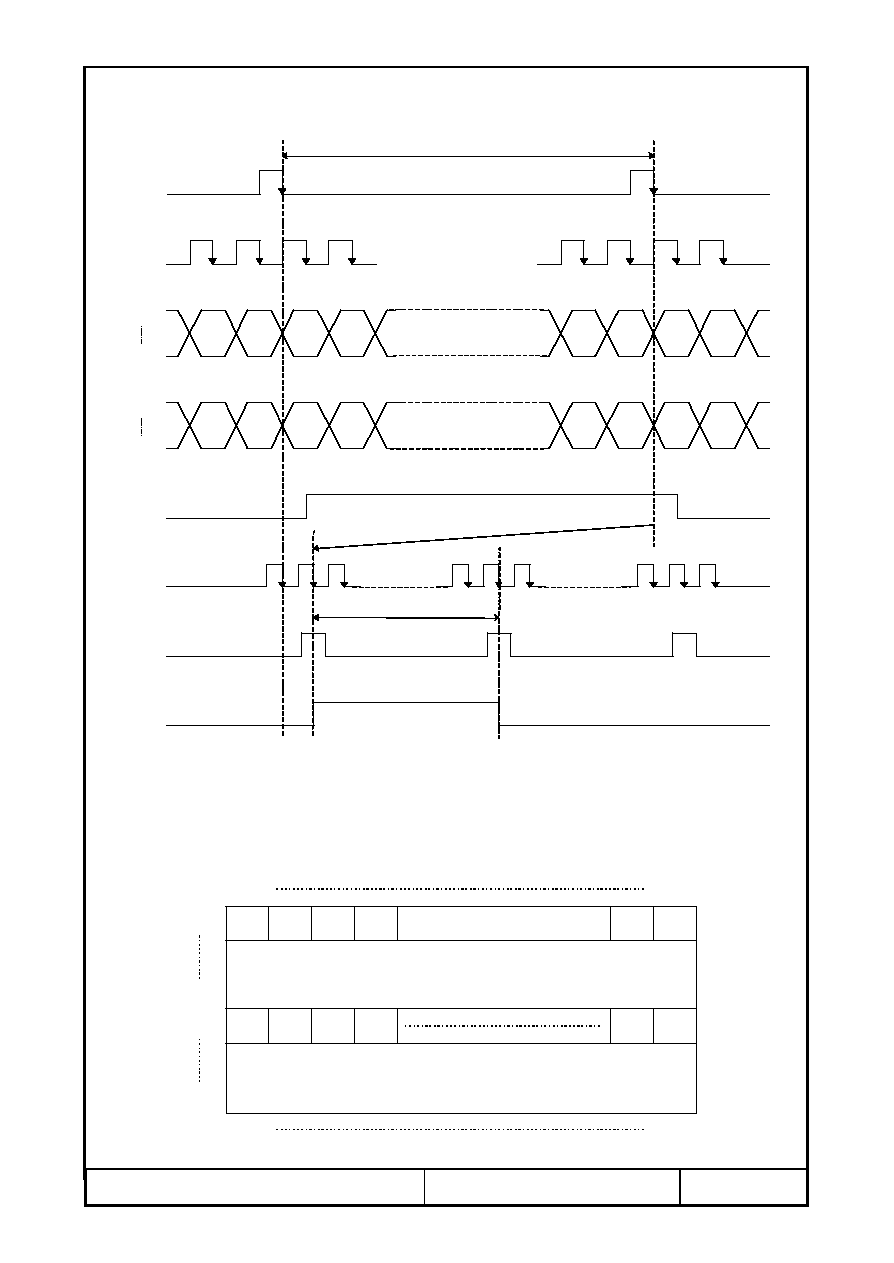

2.4. Timing Chart
2.5. Comparison of Display and Data
T=0.0595ms typ.
240 x T
M
FLM
(Reduction)
(Reduction)
LP
FLM
DU3
DU0
CP
LP
DL3
DL0
#1 DATA
SEG
SEG
SEG
SEG
SEG
SEG
SEG
SEG
640
636
8
4
640
636
8
4
637~
633~
5~
1~
637~
633~
5~
1~
#241 DATA
SEG
SEG
SEG
SEG
SEG
SEG
SEG
SEG
1280
1276
648
644
1280
1276
648
644
1277~
1273~
645~
641~
1277~
1273~
645~
641~
DU2
SEG1
SEG640
#241
#1
#240
#480
DU3
DU0~ DU3
UPPER DATA
DU0
DU1
DU0
DU1
DL0
DL1
DL0
DL1
DL2
DL3
SEG641
SEG1280
DL0~ DL3
LOWER DATA
