Datasheet: CS6208 (Myson Technology)

General Purpose 8-Bit Microcontroller /w Embedded Internet Access



Скачать: PDF   ZIP

3UHOLPLQDU\
GENERAL DESCRIPTION
FEATURES
CS6208
General Purpose 8-Bit Microcontroller /w Embedded Internet Access
USA:
1485 Saratoga Ave. #200
San Jose, CA, 95129
Tel: 408-973-8388 Fax: 408-973-9388
Sales@myson.com.tw
www.myson.com.tw
Rev. 0.9 November 2002
page 1 of 2
Myson Century, Inc.
Taiwan:
No. 2, Industry East Rd. III,
Science-Based Industrial Park, Hsin-Chu, Taiwan
Tel: 886-3-5784866 Fax: 886-3-5784349
4-cycle 80C32 instruction set compatible core
Internal 64K byte program ROM and 32K byte
data SRAM
Expandable memory space by external memory
Programmable power-fail detect and interrupt
Watch-dog timer
Three 16-bit timers
Single crystal operations (20MHz)
Programmable 8032 operating frequency (DC/
20MHz/40MHz/60MHz)
On-chip programmable PLL generates up to
60MHz processor clock
Two standard 80C32 8-bit I/O ports
16 programmable I/O ports
10-bit SAR analog to digital converter
Programmable A/D clock rate
Comprehensive power down control
Two I
2
C interfaces both programmable as master
or slave
On-chip MAC functions with shared receive/
transmit packet buffers
Built-in 10BaseT transceiver
7-wire ENDEC interface
Wide range of voltage operation from 3.0V to 3.6V
3.3V/5V tolerant I/O
128 pin PQFP/LQFP
The CS6208 is an integrated device specifically
targeted at embedded control applications that
require network access. It incorporates a high-speed
8032-compatible micro-controller core along with
64K bytes of on-chip program ROM and 32K bytes of
on-chip data SRAM. Up to 128K bytes of program
memory and 128K bytes of data memory can be
expanded by adding external memory to the
CS6208.
An on-chip crystal oscillator with PLL provides
simple clock configuration. An on-chip band-gap
reference generator provides precision reference
voltages for power-on reset and other references.
Network access is provided by moving packets
through transmit and receive buffers, and processed
by the Media Access Control (MAC) block. There
are 32K byte packet buffers local to the MAC. An on-
chip 10BaseT Ethernet transceiver allows direct
connection to a twisted-pair network environment.
Other network media, such as Home PNA, can be
accessed by the 7-wire EDEC interface using
external transceivers.
The CS6208 also includes standard port-1 and
port-3 of 8032. These ports include the functions of
serial port and interrupt, as well as timer inputs.
Additional 16-bit wide programmable I/O are also
included for external control. Two programmable
master/slave I
2
C interfaces are also included for
communications with other hosts or slave devices
such as EEPROM.
A 10-Bit SAR analog-to-digital converter with four
channel inputs allows the CS6208 to directly
interface with analog inputs.
The CS6208 operates within a wide voltage range
from 3.0V to 3.6V.
3UHOLPLQDU\

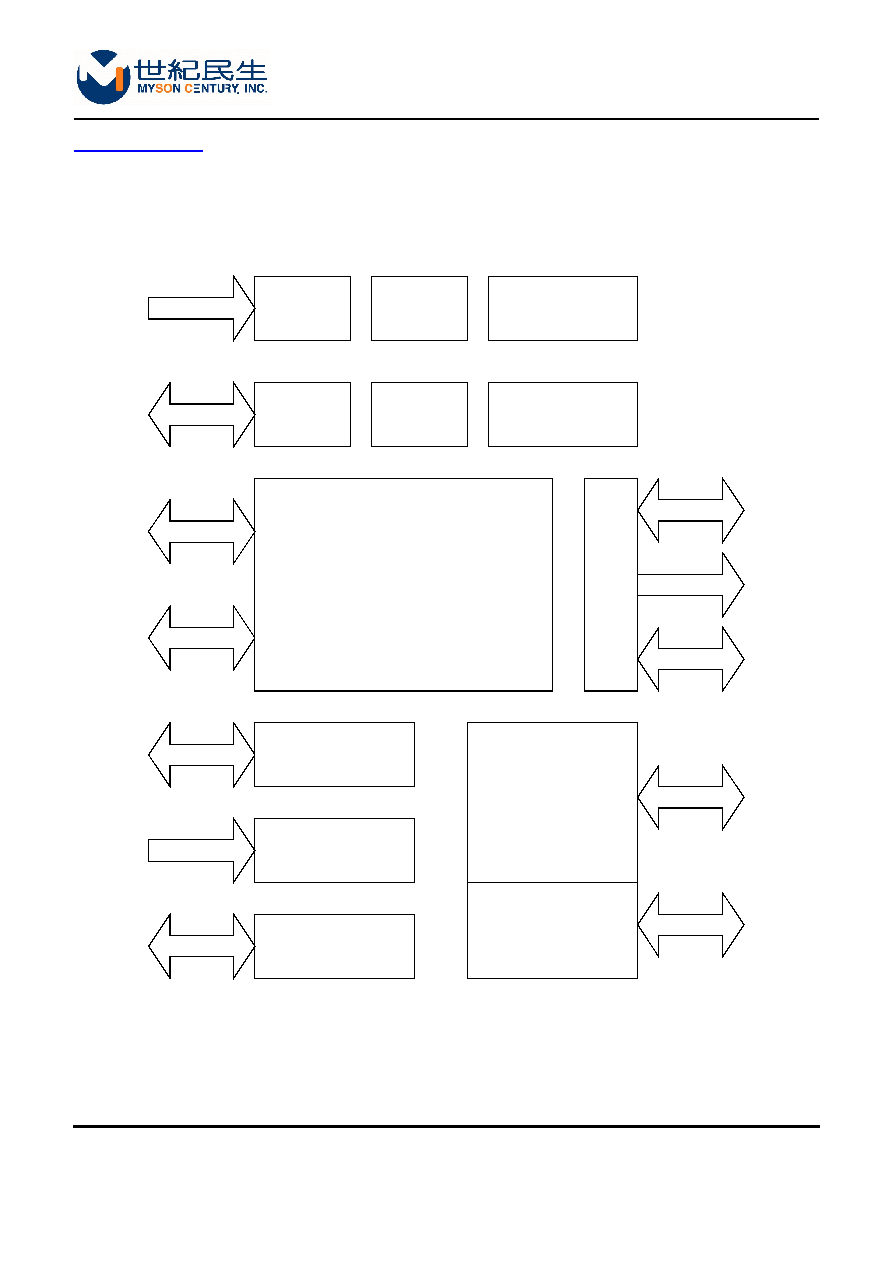

BLOCK DIAGRAM
page 2 of 2
CS6208
RST
Reset Circuit
Reference
Generator
Internal Program ROM
64K Bytes
X1/X2, LPF
Oscillator
PLL
16-Bit Prescaler
16-Bit Timer
Internal Data Memory
32K Bytes
Port 1 [7-0]
Port 3 [7-0]
PIO[15-0]
AIN[3-0],REFH/L
SCK[1-0]
DIO[1-0]
and
8032
Programmable I/O and
External Interrupt
10-Bit SAR A/D
I2C Interface
M/S, S
Addre
s
s
D
e
c
o
d
i
ng
RD\, WR\,
ROMEN\,
RAMEN\
ADDR[17-0]
DATA[7-0]
NIC
10BaseT Interface
7-Wire ENDEC
TXD+/-, RXD+/-
