Datasheet: F400-48S15 (Intronics, Inc.)

200 to 400 Watt Full Bricks



Скачать: PDF   ZIP
Intronics, Inc.
Intronics, Inc. -
1400 Providence Highway, Building 2, Norwood, MA 02062
Tel.: 781-551-5500 Fax: 781-551-5555 www.intronics.com Email: sales@intronicspower.com H400 Rev1 1/31/03

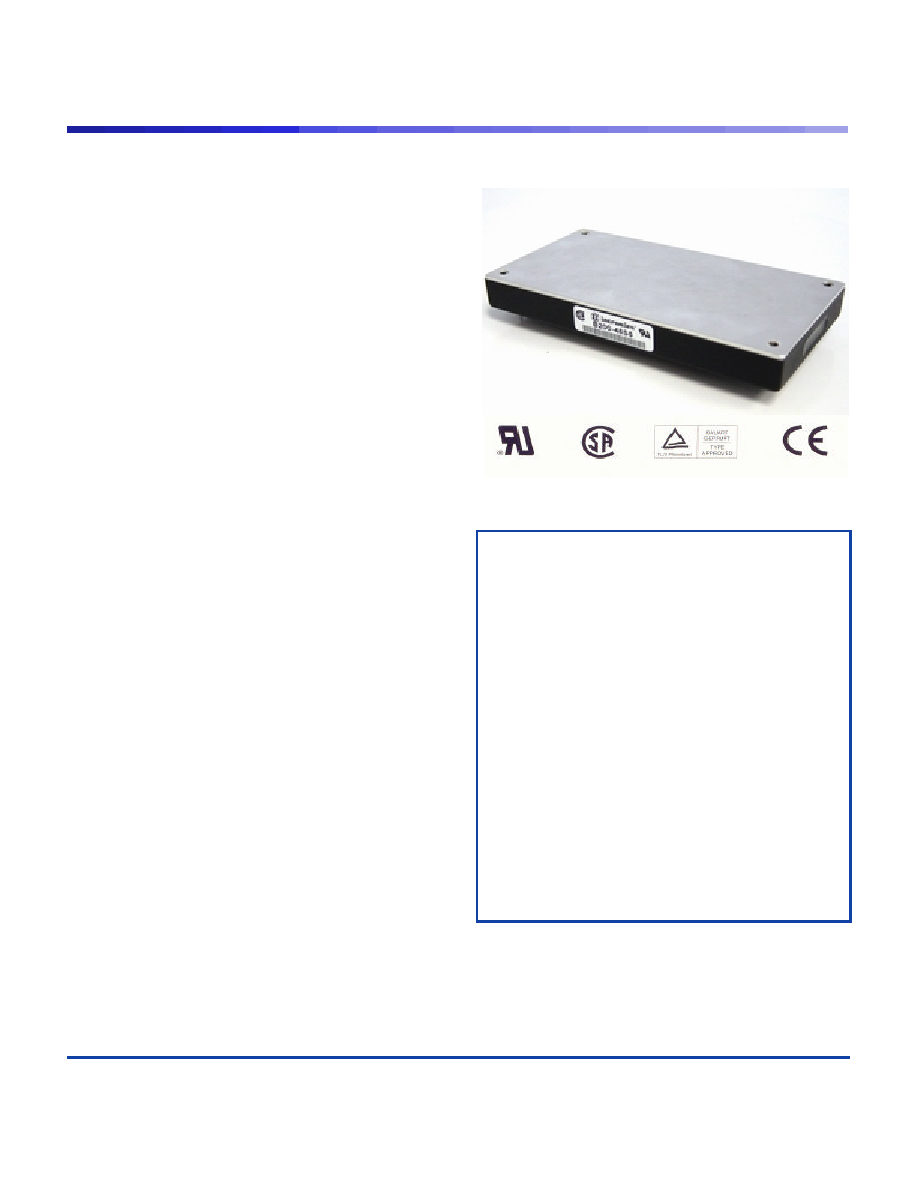

F200/400 FAMILY
Intronics, Inc.
HIGH DENSITY DC/DC CONVERTERS
F Series 200/400W Full Bricks
Description
The F series of high current DC/DC converters offer
current levels that are comparable to existing full-bricks.
With a wide input voltage range of 36-75V or 18~36V, they
are available with an output voltage of either 2.5, 3.3, 5 or 12
Volts. All models feature an input filter, input undervoltage
lockout, output overvoltage and overtemperature protection,
output current limiting and short circuit protection. The
unique construction with aluminum heat spreader design
achieves efficient heat transfer with no hot spots. The use of
patented Flat Matrix Transformer technology and other
patent-pending design concepts facilitate maximum power
delivered. The converters combine creative design concepts
with highly derated power devices to achieve very high
reliability, high performance and offer a low cost solution to
systems designers that are challenged to maximize power
and minimize board space.

Features
Delivers up to 200/400w in Bull Brick
High efficiency patented topology
Low profile of only 0.50 inch
2.5V, 3.3V, 5V ,12V or 24V output modules
-40C to +85 C ambient operation
Meets Basic Insulation requirements of EN60950
UL 1950 recognized, TUV EN60950, and CSA C22.2
No. 950 Certified and CE marked
Meets conducted limits of FCC Class B and CEI
IEC61204-3 Class B with external filter

Applications
Telecommunications
Data Communications
Wireless Communications
Networking Gear
Servers, Switches and Data Storage
Semiconductor Test Equipment
Distributed Power Architecture

Specification Summary
100A @ 2.5V, 50A @ 3.3V, 80 @ 5V, 34A @ 12V and more
Tightly output regulation, typical 1%
No minimum load required
Ripple & Noise ( 20Mhz BW) 100 mv (pk-pk) typical
Wide input operating range 36-75V, 18-36, or 200-400V
On/Off pin and remote sense
Output adjustment +/-10% range
Remote sense compensation
1500V, 10M input-to-output isolation
Output overcurrent and overvoltage protection
Over Temperature protection
Input Under voltage protection
MTBF of 1,500,000 hours @ 50C ( Bellcore )
Approvals Pending
F 200/400 FAMILY 200/400W Full Bricks
Intronics, Inc.
Product Brief
Intronics, Inc. -
1400 Providence Highway, Building 2, Norwood, MA 02062
Tel.: 781-551-5500 Fax: 781-551-5555 www.intronics.com Email: sales@intronicspower.com H400 Rev1 1/31/03

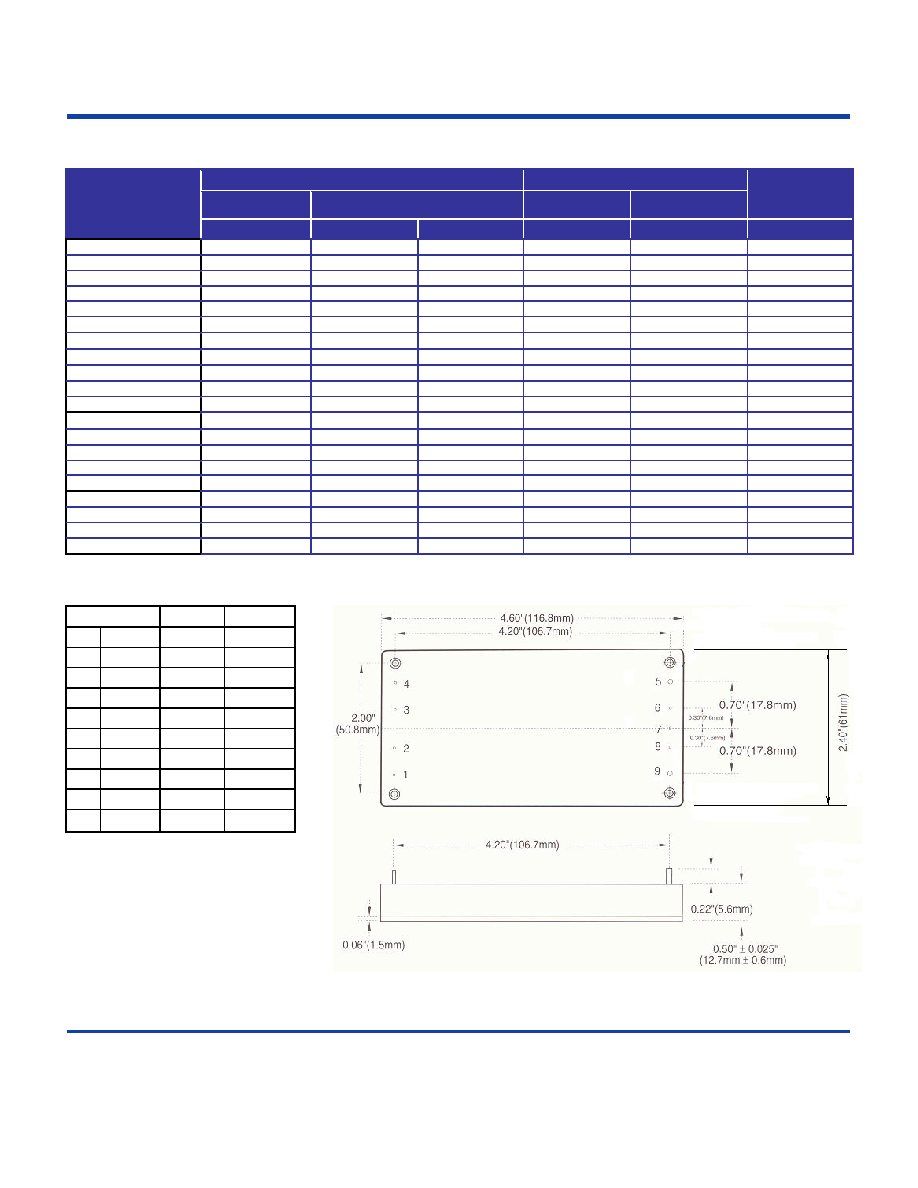

Part Number and Selection Information
Input
Output
Efficiency
Model
Voltage (Volts)
Current (A)
Voltage
Current
75% Load
Part Number
Nominal
No load
Full load
(Volts)
(Amps)
(%)
F200-48S3.3 48 0.2 4.5 3.3 50 77
F200-48S5 48 0.2 5.4 5.0 40 78
F200-48S12 48 0.2 5.4 12.0 17 79
F200-24S3.3 24 0.2 7.2 3.3 40 77
F200-24S5 24 0.2 8.0 5.0 30 78
F400-24S12 24 0.2 10.8 12.0 34 79
F200-300S3.3 300 0.2 0.7 3.3 40 77
F200-300S5 300 0.2 0.9 5.0 40 78
F200-300S12 300 0.2 0.9 12.0 17 79
F200-300S15 300 0.2 0.6 15.0 10 80
F400-48S3.3 48 0.2 12 3.3 100 77
F400-48S5 48 0.2 11 5.0 80 78
F400-48S12 48 0.2 10.9 12.0 34 79
F400-48S15 48 0.2 10.7 15.0 27 80
F400-48S24 48 0.2 10.6 24.0 17 81
F400-300S3.3 300 0.2 1.8 3.3 100 77
F400-300S5 300 0.2 1.7 5.0 80 78
F400-300S12 300 0.2 1.7 12.0 34 79
F400-300S15 300 0.2 1.7 15.0 27 80
F400-300S24 300 0.2 1.6 24.0 17 81
Consult factory for other output voltage configurations
Outline Information and Pin-out
Pin Connection
F200 F400
Pin # Function Pin Size
Pin Size
1
Vin +
0.04"
0.08"
2
On/Off
0.04"
0.08"
3
NC
0.04"
0.08"
4
Vin -
0.04"
0.08"
5
Vout-
0.08"
0.18"
6
-Sense
0.04"
0.08"
7
Trim
0.04"
0.08"
8
+Sense
0.04"
0.08"
9
Vout +
0.08"
0.18"
All dimensions are in inches [mm]
0.04"[ 1.016mm]; 0.08" [2.032mm]
0.18" [4.572mm]
Pin material: Brass
Pin finish: Tin/Lead plated
Heat spreader (baseplate) material:
Aluminum. Weight: 135g
The information and specifications contained in this brief are believed to be accurate and reliable at the time of publication. Specifications are
subject to change without notice. Refer to product specification sheet for performance characteristics and application guidelines.
