Datasheet: eNV42 (IBM)

MPEG-2 Env SD Encoders



Скачать: PDF   ZIP
IBM
eNVSD_sds_091301.fm.
02
Sept. 13, 2001
IBM39eNV422
IBM39eNV420
Summary Data Sheet
eNV SD Digital Video Encoders
Features
1 of 6
Features
Profiles and standards
4:2:2 Profile at Main Level
Main Profile at High Level
Main profile at Main Level
Simple Profile at Main Level
Image resolutions
Up to 720x512x30 Fps NTSC
Up to 720x608x25 Fps PAL
Input image pre-processing
Horizontal noise filter
Vertical noise filter
Temporal filter
Supports horizontal image scaling
Supports 4:2:2 to 4:2:0 chroma conversion
Compression Options
4:2:2 or 4:2:0 output chroma format
Supports field or frame encoding
Variable GOP structure
External reference rate control
Supports dynamically variable parameters
Supports MPEG-2 or ATSC user data insertion
Minimum encoding latency
Supports up to +/- 200H and +/- 128V search
range
Programmable quantization tables
Output
Selectable ES or PES output format
Produces up to 50 Mbps
Memory
Single SDRAM memory interface
Requires a minimum 8 MB of 125 MHz SDRAM
Supports 2 bank and 4 bank memory chips
Technology
3.3V and 2.5V power supplies
1.6W nominal power dissipation
IBM CMOS SA-12E (0.18
m) process technol-
ogy
35 mm HPBGA package
Description
The IBM eNV SD video encoder chip offers flexibility
and provides a compact solution for your SD appli-
cation. The chip supports both MPEG-1 and MPEG-
2 real-time encoding. It handles multiple profiles and
levels including 4:2:2 Profile at Main Level and can
encode picture resolutions up to 720x512 and
720x608 in NTSC and PAL, respectively.
The architecture offers a wide range of capability to
encode SD images. The chip can compress images
into either MPEG-2 4:2:2 profile for professional
applications or Main profile for broadcast applica-
tions. It can deliver 4:2:2 or 4:2:0 chroma output for-
mat. The user can program a search range of up to
+/-200H and +/-128V based on their application
needs.
The chip outputs up to 50 Mbps with superior image
quality, making it desirable for high quality, high bit
rate solutions.
The programmable on-chip noise reduction filter
provides an effective solution to achieve the best
image quality at lower bit rates, making a highly
desirable choice for broadcast and distribution appli-
cations requiring VBR and statistical-multiplexing.
Dynamic changing of encoding parameters such as
GOP structure, bit rate control, and search range in
real time provides added flexibility to optimize pic-
ture quality at the available bandwidth.
.
IBM39eNV422
IBM39eNV420
eNV SD Digital Video Encoders
Block Diagram
2 of 6
eNVSD_sds_091301.fm.
02
Sept. 13, 2001
Block Diagram

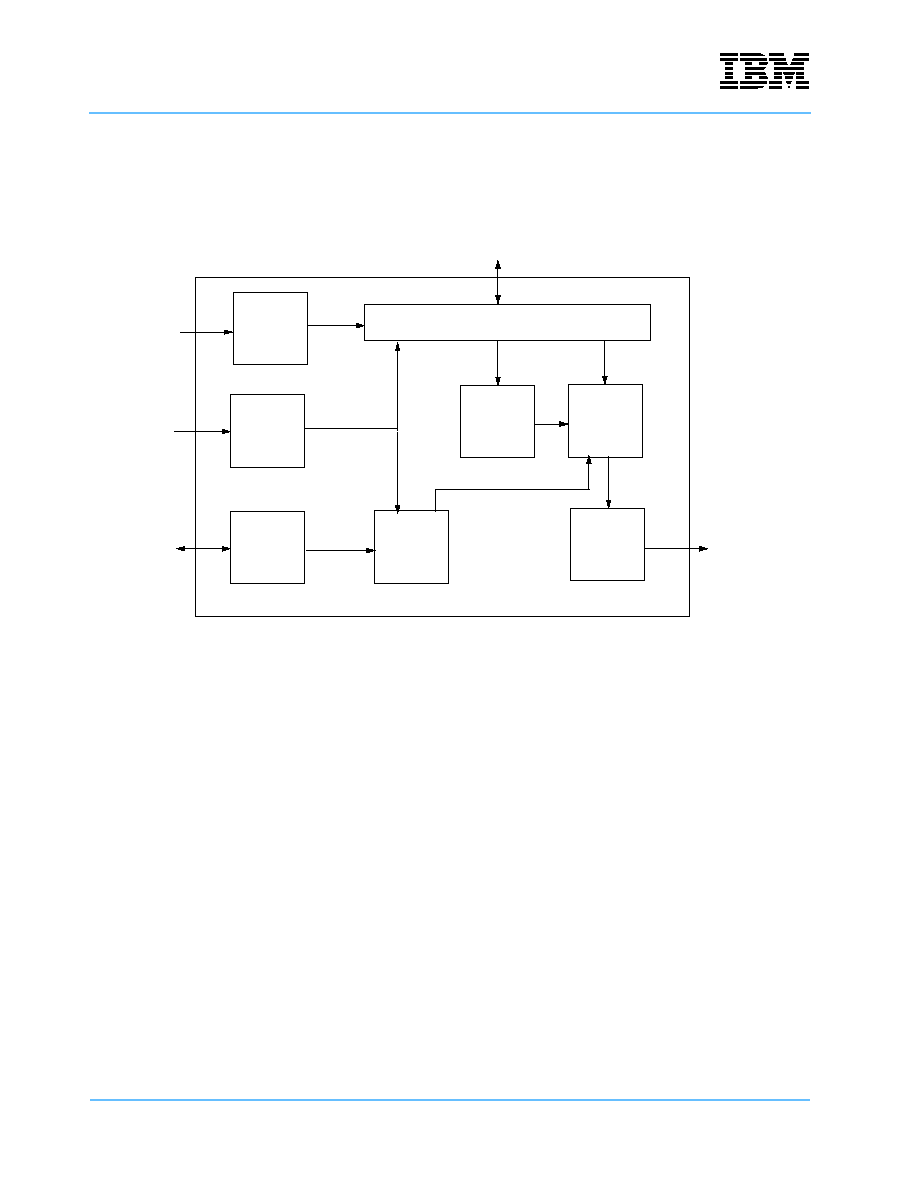

Fig. 1. eNV Block Diagram
Pixel Interface
The Pixel Interface supports user selectable CCIR 656 (8-bit) or CCIR 601(16-bit) operation. A 27 MHz pixel
clock is used for CCIR 656 format. It also supports a clock rate of up to 13.5 Mhz clock for the CCIR 601 (16-
bit) mode. This interface is designed to accept pixel data upon completion of the initialization process after
power-on reset.
Phase Lock Loop
The Phase Lock Loop (PLL) takes as input the 27 MHz reference clock, divides it into the system clock rate,
and provides synchronized clock pulses to the entire chip.
Host Interface
Connected to an external processor, the Host Interface communicates user input encoding parameters to the
system through a 16-bit data bus and 8-bit address bus. Data is entered via register writes or via dedicated
Picture and GOP stacks. The Host Interface also offers a means of inputting certain commands to the
encoder's processor by mailbox, and the reading of select system registers for status and checking.
SDRAM Control
ME
Output
Interface
Pixel
Interface
Host
Interface
Processor
Phase
Lock
Loop
DCT/IDCT
Q/IQ
VLE
Pixel
Data
External
Processor
External Memory
Bit Stream
27 MHz
IBM39eNV422
IBM39eNV420
eNV SD Digital Video Encoders
eNVSD_sds_091301.fm.
02
Sept. 13, 2001
Processor
3 of 6
Processor
A dedicated RISC processor programmed to optimize encoding across a broad range of parameters. The
processor acts as an engine for rate control, motion estimation, and motion compensation calculations.
Microcode-based field upgrades are available to the customer and are a key feature of the eNV SD video
encoder.
SDRAM Control
A single memory interface designed to support 125MHz, 32-bit SDRAM. The encoder requires a minimum of
8MB of external memory for full IPB encoding.
Motion Estimation (ME)
A hierarchical motion estimation and compensation unit capable of searching up to +/-200 horizontal pixels
and +/-128 vertical pixels. The ME unit performs past reference searches in the case of P and B pictures, and
future reference and bi-directional searches in the case of B pictures. Adaptive frame/field motion estimation
with interpolation for 1/2 pixel refinement is performed on a per macroblock basis.
DCT/IDCT/Q/IQ/VLE
Dedicated hardware function for coding the bitstream and creating reconstructed reference data for motion
estimation and compensation. The quantizer (Q) and inverse quantizer (IQ) units are capable of holding up to
eight 8x8 user quantization tables (2 intra luma, 2 non-intra luma, 2 intra chroma, 2 non-intra chroma).
Output Interface
Designed for programmable output modes and speeds up to 50Mb/sec. Outputs the bitstream in either ES or
PES format, with encoding statistics available at the output interface.
IBM39eNV422
IBM39eNV420
eNV SD Digital Video Encoders
Environmental and Electrical Specifications
4 of 6
eNVSD_sds_091301.fm.
02
Sept. 13, 2001
Environmental and Electrical Specifications
The eNV SD chip is designed to operate from 0 to 70 degrees C ambient environment.
Note: The allowable ambient temperature range specified is based on the module mounted to a 2-signal/2-power plane card
with the specified airflow on both sides of card, vertical orientation.
The drivers and receivers are compatible with 3.3 Volt-tolerant technologies.
Table 1. Operating Range/Ratings of eNV SD
Parameter
Value
Units
Vdd (supply voltage)(maximum)
2.625
Volts
Vdd (Nominal supply voltage)
2.5
5%
Volts
Vdd2 (supply voltage)(maximum)
3.465
Volts
Vdd2 (Nominal supply voltage)
3.30
5%
Volts
System Clock
27
MHz
Ambient temperature range (operating conditions)
0 - 70
C
Operating temperature range (Chip Tj)
0 - 100
C
Storage temperature range
-55 to 125
C
Air Flow (minimum)
0.5
meters/sec
Power Dissipation (nominal)
1.6
Watts
Power Dissipation (maximum)
1.8
Watts
Table 2. Physical Information of SD PBGA Package
Parameter
Value
Unit
Module dimension
35x35
mm
Module height
2
mm
Ball pitch
1.27
mm
Ball diameter
0.75
mm
IBM39eNV422
IBM39eNV420
eNV SD Digital Video Encoders
eNVSD_sds_091301.fm.
02
Sept. 13, 2001
Copyright and Disclaimer
5 of 6
Copyright and Disclaimer
Copyright International Business Machines Corporation 2001.
All Rights Reserved
Printed in the United States of America September, 2001
The following are trademarks of International Business Machines Corporation in the United States, or other countries, or
both:
IBM
IBM Logo
Other company, product, and service names may be trademarks or service marks of others.
All information contained in this document is subject to change without notice. The products described in this document
are NOT intended for use in implantation or other life support applications where malfunction may result in injury or death
to persons. The information contained in this document does not affect or change IBM's product specifications or warran-
ties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property
rights of IBM or third parties. All information contained in this document was obtained in specific environments, and is pre-
sented as an illustration. The results obtained in other operating environments may vary.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN "AS IS" BASIS. In no event will IBM be
liable for damages arising directly or indirectly from any use of the information contained in this document.
IBM Microelectronics Division
1580 Route 52, Bldg. 504
Hopewell Junction, NY 12533-6351
The IBM home page can be found at http://www.ibm.com
The IBM Microelectronics Division home page can be found at http://www.chips.ibm.com
eNVSD_sds_091301.fm.02
Sept. 13, 2001
