Datasheet: FLI2300 (Genesis Microchip Inc.)



Скачать: PDF   ZIP


Document Outline

Product Overview-
FLI2300
Digital Video Format Converter for DTV and DVD applications that
incorporates Faroudja Laboratories' Emmy award winning DCDiTM
and TrueLifeTM deinterlacing and image enhancement algorithms,
coupled with highly flexible scaling and aspect ratio conversion to
convert standard interlaced video signals into high-definition
compatible signals.
The FLI2300 Digital Video Format Converter produces the highest quality upconverted
video output from a variety of interlaced video inputs including 525i/50 (NTSC),
625i/50 (PAL or SECAM), 480p/60, 720p/60, 1080i/60 (ATSC) and RGB graphics up
to SXGA, with a maximum pixel rate of 75 MHz. It uses patented and patent pending
motion-adaptive deinterlacing that selects the optimal filtering on a per-pixel basis to
produce maximum resolution without introducing motion artifacts. This includes film
mode for proper handling of 3:2 and 2:2 pulldown as well as bad edit detection and
correction, technologies invented by Faroudja Laboratories. Prior to deinterlacing, the
built-in motion-adaptive noise-reducer can be used to improve the signal-to-noise ratio,
resulting in further improved deinterlacing. Another proprietary feature is Directional
Correlational Deinterlacing (DCDiTM). This technology identifies edges at any angle in
moving images and interpolates along the edge to produce smooth, natural images
without the staircasing or jaggies produced by other deinterlacing technologies. The
FLI2300 also includes motion-adaptive cross-color suppression that removes highly
objectionable coloration artifacts produced by commonly used video decoders. Flexible
multi-tap horizontal and vertical scalers can be used to upconvert the image to any
resolution up to 1080p or SXGA and to perform aspect ratio conversion. The output
frame rate can be synchronous with the input or changed to be synchronized to a
separate source, and the output can be either progressive or interlaced, with a maximum
output pixel rate of 150 MHz, in either RGB or component formats. On-chip 10-bit
DACs can be used to produce analog outputs in addition to the digital outputs. The
FLI2300 also includes Faroudja Laboratories' TrueLifeTM 2-D non-linear enhancement
processing to ensure the highest possible quality images without introducing the
artifacts typically introduced by sharpening algorithms. The FLI2301 is a variant of the
FLI2300 that also includes a built-in MacrovisionTM copy-protection generator for use
in progressive scan DVD players. The FLI2310 is a variant of the FLI2300 with digital
outputs only.
Genesis Microchip Inc.
2150 Gold Street, Alviso, P.O. Box 2150, CA US 95002 Tel: (408) 262-6599 Fax: (408) 262-6365
165 Commerce Valley Dr. West, Thornhill, ON Canada L3T 7V8 Tel: (905) 889-5400 Fax: (905) 889-5422
1096, 12thA Main, Hal II Stage, Indira Nagar, Bangalore-560 008, India, Tel: (91)-80-526-3878, Fax: (91)-80-529-6245
4F, No. 24, Ln 123, Sec 6, Min-Chuan E. Rd., Taipei, Taiwan, ROC Tel: 886-2-2791-0118 Fax: 886-2-2791-0196
143-37 Hyundai Tower, #902, Samsung-dong, Kangnam-gu, Seoul, Korea 135-090 Tel 82-2-553-5693 Fax 82-2-552-4942
Rm2614-2618 Shenzhen Office Tower, 6007 Shennan Blvd, 518040, Shenzhen, Guandong, P.R.C., Tel (0755)386-0101, Fax (0755)386-7874
2-9-5 Higashigotanda, Shinagawa-ku, Tokyo, 141-0022, Japan, Tel 81-3-5798-2758, Fax 81-3-5798-2759
www.genesis-microchip.com / info@genesis-microchip.com
..
The FLI2300 includes all clock generation on-chip, and SDRAM controller and input
and output color-space converters. It uses an industry standard two-wire serial interface
for easy control and access to the registers.
Features
Motion-adaptive recursive noise-reducer
improves signal-to-noise ratio without
introducing motion-induced smearing
effects, resulting in further improved
deinterlacing
Patented Faroudja per-pixel motion adaptive
algorithms produces full resolution in the
stationary areas of each frame while
suppressing motion artifacts in the moving
areas
Directional Correlational Deinterlacing
Proprietary per-pixel selection of edge
direction produces smooth and natural
images without staircasing or jaggies
Patented Film-mode produces artifact-free
images by proper handling of 3:2 and 2:2
pulldown materials
Bad-edit detection and correction
compensates for poor scene cuts and video
insertions common in broadcast material

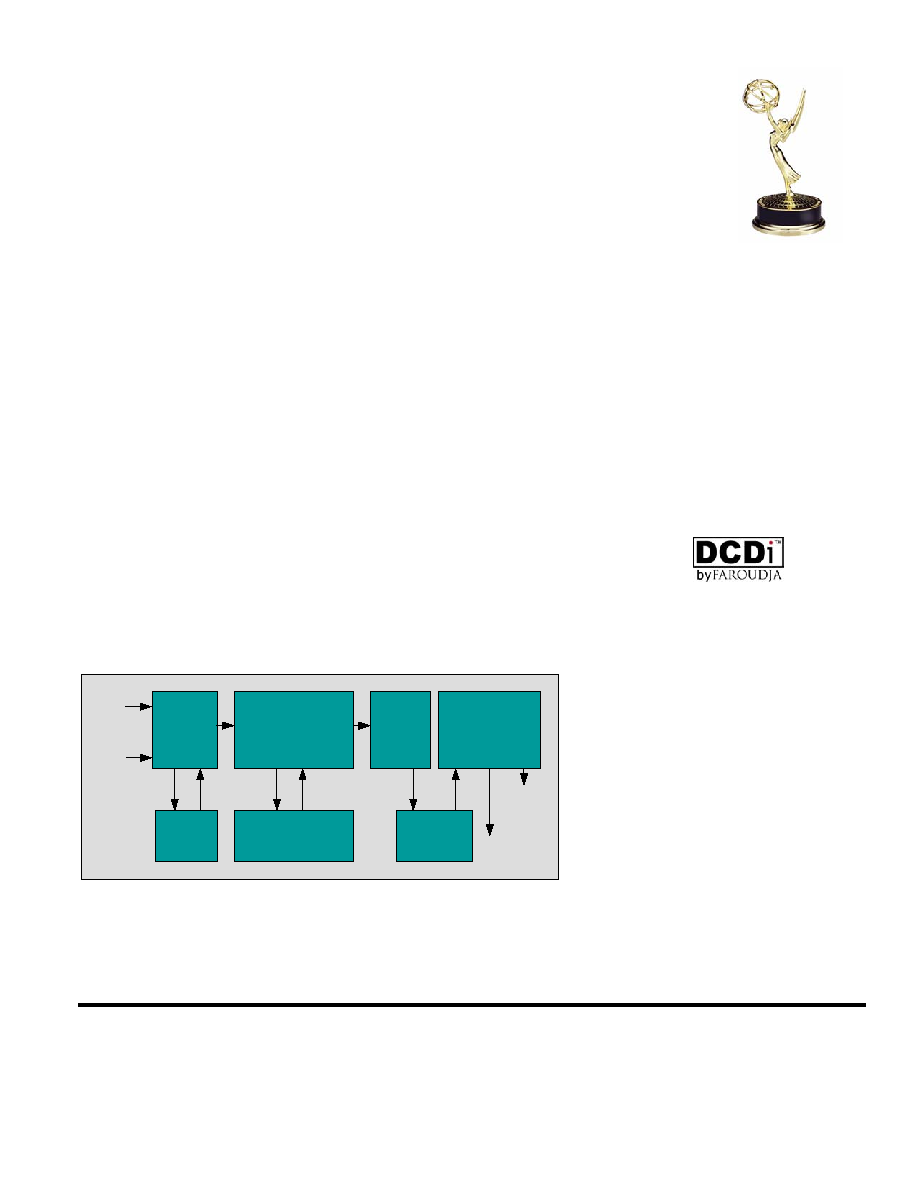

Port 2
8-bit
656
Input
Input Proc.
with Auto
Sync
and auto
Adjust
Noise Reducer,
Deinterlacer, Frame
Rate Converter and
SDRAM interface
Output
Processor with
Sync Generation
and DACs
Motion-adaptive Cross-color suppression
(CCS) removes "false color" artifacts
produced by improper Y/C separation in
low-cost video decoders
Vertical &
Horizontal
Scalers
Port 1
8/16/24-bit
RGB/YCrC
b
Input
Supports both standard definition (525i/60
NTSC and 625i/50 PAL/SECAM) and
enhanced/high definition (480p/60, 720p/60
and 1080i/60) input video signals with auto-
detection of standard
Digital
Outputs
Vertical and
Horizontal
Enhancers
Clock
Gen.
PLLs
2Mx32
SDRAM
(external)
Analog
Outputs
Built-in front-end color-space converter also
allows RGB graphics inputs from VGA
(640x480) up to SXGA (1280x1024)
High-quality two-dimensional scaling
upconverts signals to desired resolution

Product Overview FLI2300
Doc
C0702-OVR-01A
Page 2 of 2
*** Genesis Microchip Confidential ***
Aspect ratio conversion can be used to
convert letterbox images to full-screen, full-
screen 4x3 images to pillarbox 16x9 or any
other mode
Both horizontal and vertical scaling can be
linear or non-linear for maximum flexibility
"Curtain generator" allows top and bottom
or sides of non-full-screen images to be
shown in a wide range of colors and
brightness to suit user's environment
Two-dimensional non-linear TrueLifeTM
enhancement brings out details in images
and sharpens edges in both chroma and luma
signals, producing a more lifelike image
Tearless frame rate conversion allows
generation of outputs either synchronized to
other sources or upconverted from input
rate, allowing generation of 75i or 100i
outputs from 50i inputs
Built-in output color-space converter allows
generation of 4:4:4 RGB outputs as well as
4:2:2 or 4:4:4 YCbCr or YPbPr
Built-in triple 10-bit DAC generates high
quality analog outputs for CRT displays
Built-in MacrovisionTM copy protection
generator allows use of FLI2301 in
compliant progressive-scan DVD players
Uses up to 4 MB of low-cost SDRAM as
frame memories
Standard 2-wire serial interface (I2C
compatible for easy access to registers
Applications
Flat panel TV LCD, PDP, DLPTM
HD compatible CRT TVs
Progressive DVD players (FLI2301)
Progressive cable and satellite STBs
Multimedia PCs/workstations

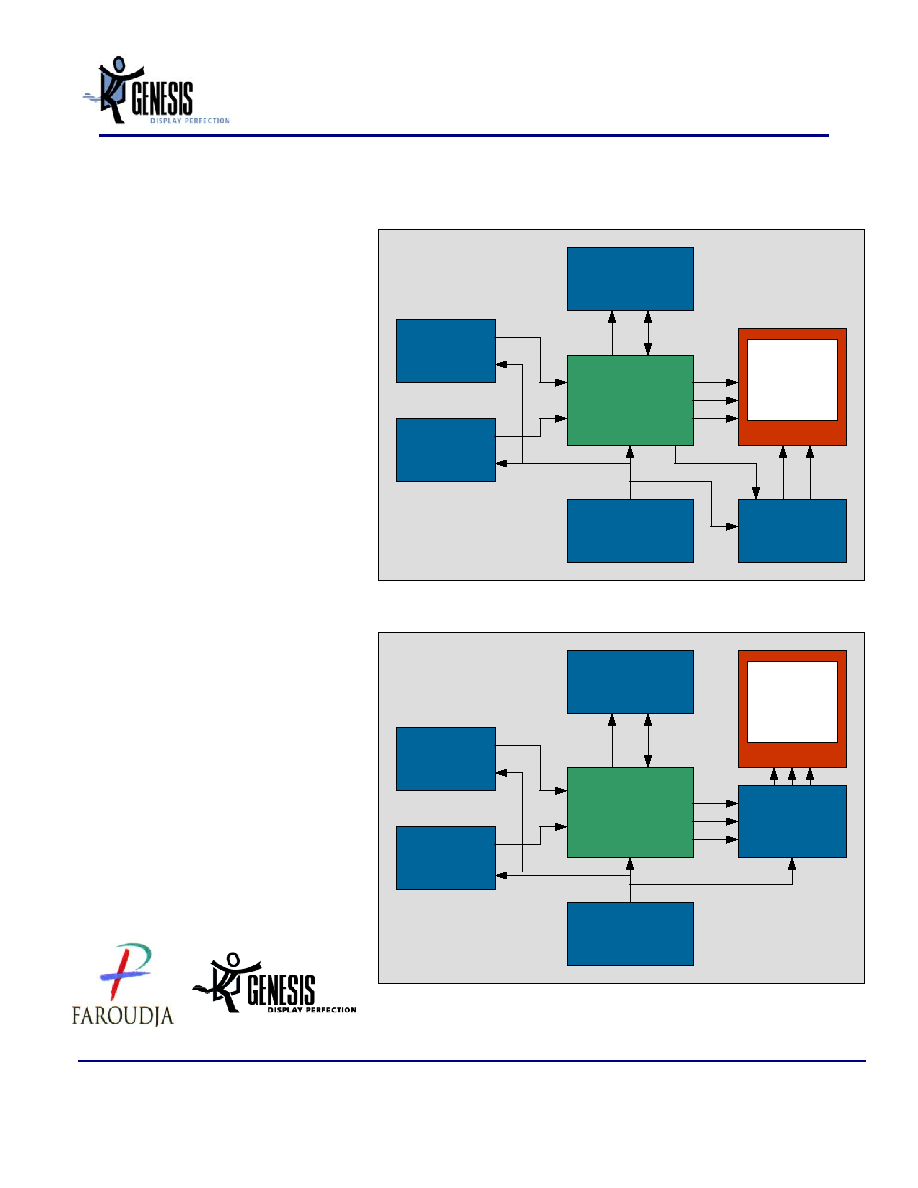

CRT Based HDTV Application
1M x 32
SDRAM
Digital TV
Decoder
Ana.
RGB
Hi Scan
CRT
Display
FLI2300 Digital
Video Format
Converter
NTSC/PAL
Decoder
Micro
Controller
Scan Control
Circuit
Flat Panel TV Application
1M x 32
SDRAM
LCD
Panel
Digital TV
Decoder
Dig.
RGB
FLI2310 Digital
Video Format
Converter
Panel Timing
Control
Circuit
NTSC/PAL
Decoder
Micro
Controller
Emmy is a registered trademark of the Academy of Television Arts and Sciences
(ATAS)/ National Academy of Television Arts & Sciences (NATAS)
www.genesis-microchip.com
