Datasheet: F10920FR (No company)



Скачать: PDF   ZIP
No company
FRD
Type :
F10P20FR
F10P20FR
F10P20FR
F10P20FR
OUTLINE DRAWING
Maximum Ratings
Approx Net Weight:1.75g
Rating
Symbol F10P20FR
Unit
Repetitive Peak Reverse Voltage
V
RRM
200 V
Non-repetitive Peak Reverse Voltage
V
RSM
220 V
Average Rectified Output Current
I
O
10
Tc=117
C
50 Hz,Full Sine Wave
Resistive Load
A
RMS Forward Current
I
F(RMS)
11.1 A
Surge Forward Current
I
FSM
80
50 Hz Full Sine Wave,1cycle
Non-repetitive
A
Operating JunctionTemperature Range
Tjw
- 40 to + 150
C
Storage Temperature Range
Tstg
- 40 to + 150
C
Mounting torque
0.5 Recommended value
N
m
Electrical
Thermal Characteristics
Characteristics
Symbol Conditions Min. Typ.
Max.
Unit
Peak Reverse Current
I
RM
Tj=25
C,V
RM
=V
RRM
per Arm
- - 20
A
Peak Forward Voltage
V
FM
Tj=25
C, I
FM
=5A per Arm
- -
0.98
V
Reverse Recovery Time
trr
I
FM
= 5
A,
-di/dt= 50 A/
s, Ta= 25
C
- - 35
ns
Rth(j-c) Junction to Case
-
-
3
Thermal Resistance
Rth(c-f) Case to Fin
1.5
C/W














FEATURES
* Fully Molded Isolation
* Dual Diodes Anode Common
* Ultra Fast Recovery
* Low Forward Voltage Drop
* High Surge Capability
* 200 Volts thru 600 Volts Types Available

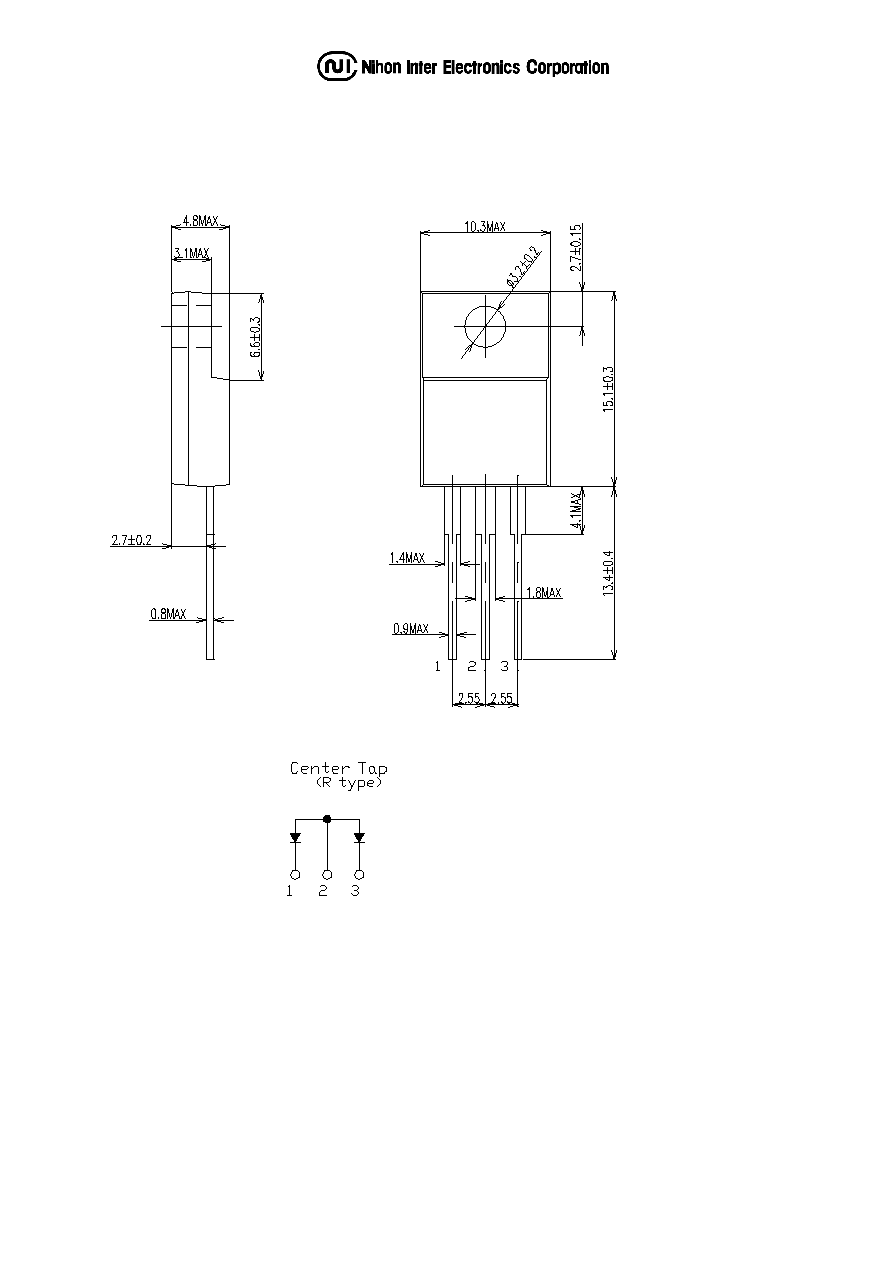

F10P20FR OUTLINE DRAWING (Dimensions in mm)
